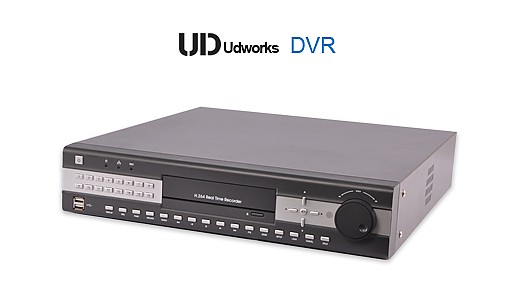

DVR
Product Information
Products Info
상품 기본설명
상품 상세설명
| ODD Maker | Model | Result |
| LG | GH24NS70 | pass |
| GH24NS90 | Fail to pass | |
| Lite-on | iHAS122 | pass |
| SAMSUNG | SH-222BB | fail to pass |
Specification
| Stream | Scenario1 | Scenario2 | Scenario3 | Scenario4 |
| Encode Primary stream | 4 x D1 30fps/ch | 8 x D1 30fps/ch | 16 x CIF 30fps/ch | 8 x CIF 30fps/ch |
| H.264 | H.264 | H.264 | H.264 | |
| Encode Secondary stream | 4 x CIF 30fps/ch | N/A | 16 x QCIF 4fps/ch | 8 x QCIF 30fps/ch |
| H.264 | N/A | H.264 | H.264 | |
| Decode stream | 4 x D1 30fps/ch | 1 x D1 30fps/ch | 16 x CIF 30fps/ch | 8 x CIF 30fps/ch |
| H.264 | H.264 | H.264 | H.264 | |
| Encode Audio stream | 4 x G.711 mono 16KHz | 8 x G.711 mono 16KHz | 16 x G.711 mono 16KHz | 8 x G.711 mono 16KHz |
| Decode Audio stram | 1 x G.711 mono 16KHz | 1 x G.711 mono 16KHz | 1 x G.711 mono 16KHz | 1 x G.711 mono 16KHz |
NOTE : Each Scenario would need a different DM8107 configuration/variants. More details coming soon. Contact Texas Instruments for further information.
