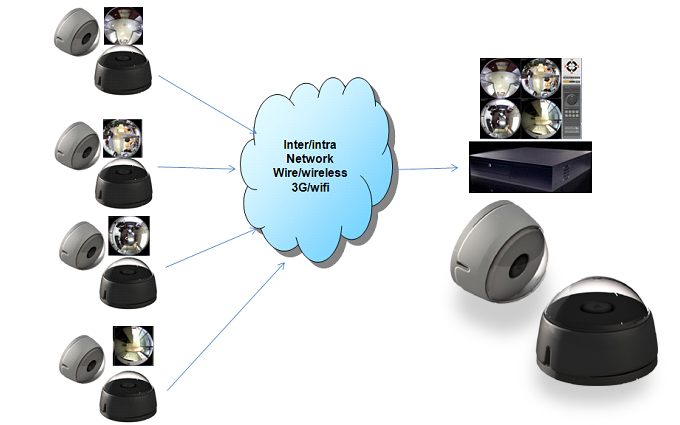

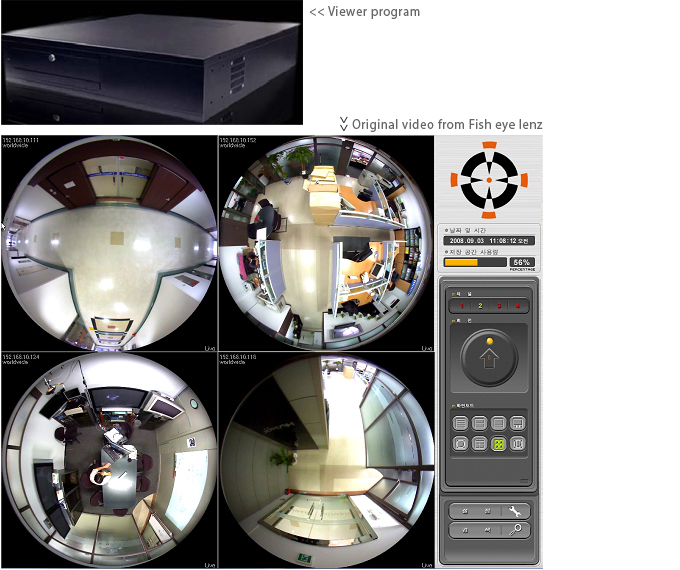

PC server with Remote Viewer program & storage ;

IP camera DM 355
Feature	Specification
Sensor	1/3.2 INCH CMOS COLOR
Resolution	1200 x 1200
Video input	2M PIXEL
Compression	MPEG4 15fps
Output	NTSC/PAL
LENS focus length	f=1.24mm, F:2.8 FISH EYE Lens
Angle range	FIXED TYPE 360
Output type	USB 2.0 HIGH SPEED
RJ-45 (10/100BASE T)
CVBS: 1.0Vp-p @ 75Ω RCA
Minimum lux	0.7LUX
WDR, DAY & NIGHT	MANUL
GAIN , White balance	GAIN: AUTO, MANUAL White balance: AUTO
Motion detection	YES
RECORDING SPEED	MAX HD 15fps
RECORD RESOLUTION	1200*1200
RESET	BUTTON 내장
INDICATION	POWER, LINK
IP	STSTIC/DYNAMIC
Operation temperature	0˚C ~ 40˚C
Operation humidity	20% ~ 85% RH
Power	DC 12V(JACK TYPE) 1.2A
Size	92￠ * 63mm(H)
Weight	200g
Power consumption	MAX. 1.8W
