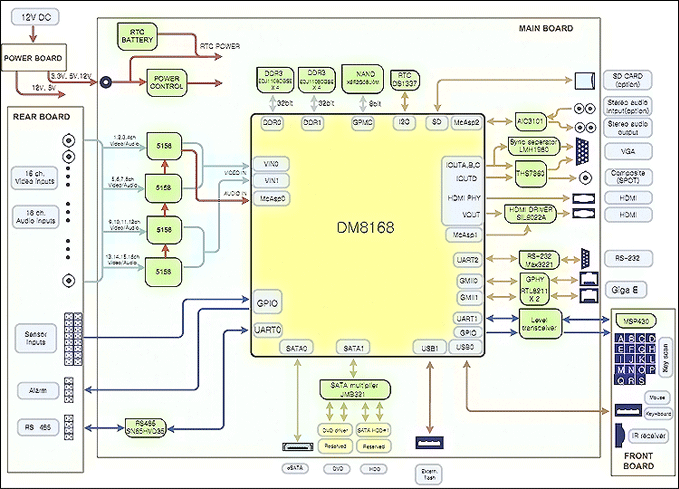

TI DM8168 SoC based design.

TI TVP5158 multi-channel video decoder to capture video from analog cameras

Overall record features are given below

• - Multi-codec record support (H264/MPEG4/MJPEG)
• - records up to 16 channel D1
• - various record trigger modes including manual mode, motion detect mode, schedule based mode, external event input mode
• - audio 8KHz / 16KHz Audio mono input and compression per channel 1 channel Audio stereo input and compression
• - One of multiple input/playback audio channels can be output to the single speaker at a time

Storage of compressed input channels (audio+video)

• - Supports SATA2 (3Gbps) x2 and eSATA

Streaming of compressed input channels as well as playback channel (audio+video) over network

• - RTSP/RTP protocol based streaming

Overall playback performance is given below

• - Multi CH playback of files stored in HDD / USB Drive
• - CIF / Half D1 / D1 resolution
• - NTSC / PAL
• - up to 30 fps
• - playback data can be viewed on the display monitor
• - playback data can also be streamed over network to VMS Client
• - when playback runs in parallel with recording/live view, recording/live view FPS is reduced according to available system performance
• - various playback modes like playback / search based on camera input, date, event type
• - trick play modes for FF / REW

Live view

• - All input / playback video channels can be viewed at the same time with different screen layouts supported
• - Display type:HDMI,composite(NTSC/PAL),computer monitor display(upto XGA 1280x1024)
• - De-interlacing / De-noising of data before display

Multiple user interfaces

• - All input / playback video channels can be viewed at the same time with different screen layouts supported
• - Display type:HDMI,composite(NTSC/PAL),computer monitor display(upto XGA 1280x1024)
• - De-interlacing / De-noising of data before display

Other features

• - HDD content backup via USB 2.0 storage drive
• - Video loss detection
• - Camera title, date-time imprint on the input video channels
• - PTZ control for analog camera inputs

Software Development Kit (SDK) provided for easy customization

• - Modular, scalable, robust software architecture with ability to change customized, different parts of the system easily
• - Open source Linux OS based software stack
• - Complete source available along with documentation

Recommendation for ODD

• We've tested several ODD for DVD backup

  Test results is as belows.

Test results is as belows.

ODD Maker	Model	Result
LG	GH24NS70	pass
	GH24NS90	Fail to pass
Lite-on	iHAS122	pass
SAMSUNG	SH-222BB	fail to pass

Video Input Combination
Number of Input Channels (16 Analog Camera + IPNC)	Channel Property	Recording stream 1	Recording stream 2	Recording stream 3 (Phase 2)
16 Analog cameras	Resolution	D1 (720x480 NTSC) (720x576 PAL)	CIF (360x240 NTSC) (360x288 PAL)	D1 (720x480 NTSC) (720x576 PAL)
	FPS	480 (NTSC) 400 (PAL)	240 (NTSC) 200 (PAL)	80 (NTSC) 64 (PAL)
	Per Channel Bitrate	512Kbps, 1/2/4/6Mbps	64/128/256 /512Kbs /1Mbps	1/2/4Mbps
	Codec	H264	H264/MPEG4	MJPEG
IPNC / Playback	Resolution	Up to 1080P	Up to D1	Up to 1080P
	FPS	240 fps @ D1
	Codec	H264/MPEG4	H264/MPEG4	MJPEG

Note :
Prices do not include taxes, shipping and handling Standard Delievery : 4~5 weeks
License : There are two License agreements in the box. See the details of the license agreements below.

1. Production license agreement
After signing the production license agreement with TI, the below complete Hardware and Software will be provided

• Linux Support Package and schematics
• Linux source code including driver
• Developing Documents

2-1.DM8168 DVR RD without HDD

• Power supply AC 50/60Hz 100-240V
• UART cable for RS232 terminal debug
• Ethernet cable
• User Guide
• CD with software and documentation
• Price US$1,295

2-2.DM8168 DVR RD with HDD (1TB)

• Power supply AC 50/60Hz 100-240V
• UART cable for RS232 terminal debug
• Ethernet cable
• User Guide
• CD with software and documentation
• Price US$1,595
